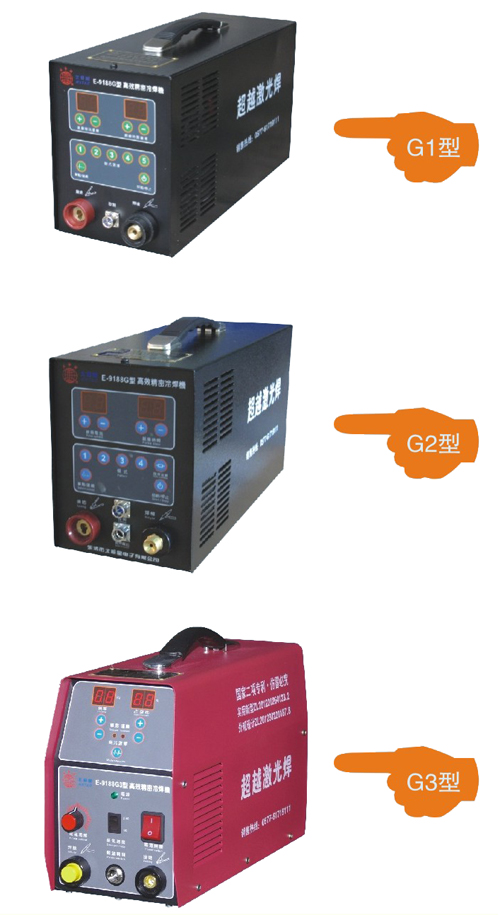

E-9188G series beyond laser welding, high-precision cold welding |
Description |
E-9188G3-type on the basis of the original G1, G2, after three years of development and improvement, the solder joints more focused stability, can be used for very fine soldering and welding, welding machine can not only form of laser pulse single point welding, continuous welding, machine, kill two birds with one stone, so that customers do not need to buy a TIG equipment, waste of money and of space.
E-9188G3-type welding machine works:
The machine adopts high-power inverter power supply (AC-DC-AC-DC), converted into the end voltage, high current DC power mains, so we need welding power conditions in microcomputer technology, time and pulse width of the welding precision control, convert the energy released by the form of a pulse arc between the tungsten electrode and the workpiece in an instant, high-temperature arc of the metal material of the workpiece and wire quickly melted and fused together to achieve welding purposes.
This welding method is characterized by: a very short time, very little heat. This welding machine can be completed within a few tens of milliseconds wire and workpiece welding process, as opposed to ordinary welder (more than a few seconds), transmitted to the workpiece much less heat. Workpiece matrix, less heat, solder materials other than temperature rise is small, does not produce the annealing discoloration. Because the volume of each weld pulse is generated in the molten bath is less than 1 mm, the formation of the stress is also smaller. A welding requires a lot of molten pool combined, but because of the direction of the stress of the solder joints dispersed workpiece are less concentrated stress after welding deformation of the workpiece is small.
E-9188G3-type metal repair welding machine developed by our company, it has the following advantages:
1 high weld strength: the full metallurgical weld repairs at the milling, filing and other post-processing.
2 Patch accuracy: round wire fill material to be repaired, do not lose the original datum, less the excess solder, easy post-surgery.
The minimum amount of repair 0.1mm (0.1mm diameter fill material).
Repair fast: the fastest repair up to 100mm6/min.
4 Substrate injury: hot spots, will not cause deformation of the substrate annealing.
Power distribution is reasonable: the use of microcomputer chip control, a variety of different diameters materials can get the best power.
6. Voltage range: switching power supply, when the voltage change to fluctuate within a range of ± 20%, the machine still guaranteed to work, and to maintain a stable output power.
Electrically connected: with quick coupling connector can be easily connected to the installation.
Easy to carry: small size machine (370 × 150 × 200) mm, light weight, 9kg
Performance indicators:
Welding materials: In addition to the low melting point materials such as zinc, tin and carbide parts made of all kinds of metal materials can be repaired.
Welding items: 1. Equipment and tooling in the course of local wear.
2 during manufacture defects, such as trachoma stomatal size tolerance, edges and corners of damage, lack of argon welding.
Cavity rust spots and dents.
4 can be used for sheet metal welding, pipe welding and continuous operation
5 can be used for the welding of metal products processing.
Power supply: single-phase 220V ± 20% 50Hz
Power consumption :10-2000W
Instantaneous maximum power: more than 60KW
The current regulation: knob stepless adjustment 1-100A
Save your settings: set frequency pulse can press and hold the Mode Select key to save, save after shutdown next boot or the same value.
Frequency selection :1-10 file (one second, 1 is equal to a second discharge 1 or 2 are equal to a second discharge, and so on, 10-speed is equal to 10 times a second discharge)
Duty cycle :0-99%
Extension of gas: 2.5 seconds to 5 seconds
The mode options: single point pulse, continuous pulse TIG pulse frequency and duty cycle had no effect (in this mode, only adjust the current size).
The host volume: (375 × 150 × 230) mm
Host weight: 9Kg
Packing size: (650 x 270 x 310) mm Weight: 15kg
|
|
|
