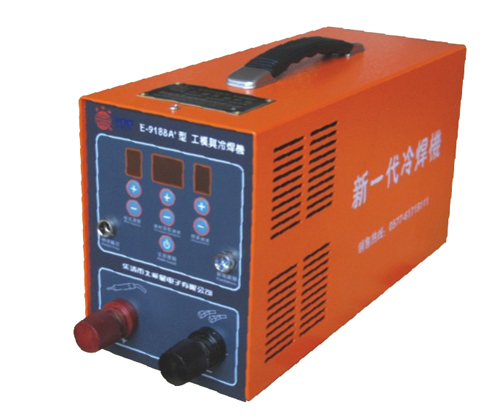

E-9188A +-type tool and die repair machine, a new generation of cold welding

E-9188A +-type tool and die repair machine, a new generation of cold welding

  Description

E-9188A + mold repair machine (cold welding) E-9188A-type mold repair machine (cold welding) on the basis of improved form, smaller size (370 × 150 × 200) mm, weight lighter (weighs only 10 kg), more power (one-time repair 0.4mm), easy to carry out door-to-door processing.

E-9188A +-type tool and die repair machines, the cold welding function easily achieve the following patches requirements:
Weld strength: mend milling, filing and other processing.
High precision repair: repair, do not lose the original datum sheet fill material, and excess solder, easy post-surgery. Minimum amount of repair 0.03mm (δ0.035 fill material)
Scope: In addition to copper, aluminum and other low resistivity material, all kinds of metal material of the workpiece can be repaired.
Substrate injury: hot spots, will not cause deformation of the substrate annealing.
Electrical connection: with magnetic connector workpiece of any size, can be easily electrically connected.

E-9188A + type as my company one of the state-of-the-art repair machine products, but also has other common cold welding incomparable advantages:
Volume is smaller (370 × 150 × 200) mm, lighter (host weighs only 10kg), greater power
2 microcomputer control, intelligent to adapt to the different thickness of fill material, different parts and different welding head size. Power distribution more reasonable, digital display, more intuitive and more convenient operation.
3 switching power supply technology, when the voltage fluctuations in the range of 220V ± 20%, able to ensure stable power output, ensure the welding quality.
Set up a separate precision welding mode and precision welding head for precision operation to provide more support
Latest upgrade, single-sided bipolar welding in the hardware industry to provide solutions
6 Package Dimensions: (650 x 270 x 310) mm weight: 16.5kg

Special note:

Please notice the difference between the maximum thickness of the monolayer thickness and a single point, the maximum thickness of the weld and the maximum reliable welding thickness.

Single-layer and single point: the principle is similar to resistance welding, cold welding repair when only one solder joints, the joints around the shunt, the output power of the most concentrated, the thickness of the welding. General repair work, certainly to repair a surface. When patching a surface around each solder joints (joints other than the first solder joint) has the diversion of output power, the reliable welding thickness is bound to reduce. Under normal circumstances, determine the size of the patch machine power, it is recommended as a standard thickness of the monolayer reliable welding. All the instructions on the data are reliable single-layer welding data.

The maximum thickness of the weld and the maximum reliable welding thickness: welding up the material is not equivalent to weld. Repair machine, welding material must be completely fused with the workpiece (ie reliable welding), otherwise, in the post-processing and the use of fill material easy to fall off. All the instructions on the data are single-layer welding data.

The special material portion of the material (such as stainless steel, etc.), their maximum reliable solder thickness may be greater than the ordinary steel. The specific use of trial and error, or communicate with our technical staff.
