Products |

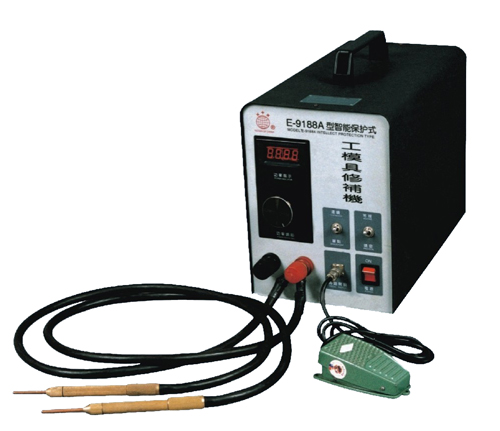

E-9188A intelligent protection type, tool and die repair machine, cold welding |
Description |
Description:
With the development of industrial technology in the world, tool and die has become the main tools of production in related industries. However, a small amount of defects, collision damage and accumulation of wear shift caused by the mold even the entire plant abandoned waste. To this end, the factory developed the E-9188A intelligent protection tool and die repair machine, which enables you to mold damaged or scrapped equipment back to life, brought to light is the ideal tool for tool and die a small amount of defects.
Main features:
1, the welding strength: repair, grinding, milling, filing and processing
2, high precision repair: repair sheet fill material will not lose datum, less the excess solder, easy post-surgery, the minimum amount of repair 0.03mm, maximum repair amount of 0.40mm, A-type machine is the largest international power.
3 Scope: In addition to copper, aluminum and other low resistance material, all kinds of metal material workpiece can be repaired.
4 Substrate injury: hot spots, will not cause deformation of the substrate annealing.
5, stable welding power: when the supply voltage variations fluctuate within a range of ± 10%, the machine is still able to ensure the quality of the repair.
6, the output power: single point welding welding ф1mm the wire.
7, Intelligent Protection type: the modern microcomputer control technology, ready access to all improper operation of automatic protection and Offbeat prompt.
8, the operation is simple: to adapt to the general manual.
Electrically connected: with magnetic connector, any size can be easily electrical connection.
Technical parameters:
Repair materials: In addition to copper, aluminum and other low resistivity material, a variety of metal materials can be repaired.
Patch: 1 processing defects in the manufacturing process, such as excessive cutting size super differential angular injury, TIG.
2 tool and die use of partial wear generated in the process.
Cavity corrosion depression.
Power supply: single-phase AC 220V ± 10% 50Hz
Power consumption: 50-500W
Instantaneous maximum power: ≥ 12KW
Operating modes: single-point and continuous
Continuous pulse frequency: 30KHz automatic frequency
Power mode: Precision and conventional
Dimensions: 460 x 230 x 310mm
Weight: 25kg
|
|
|
