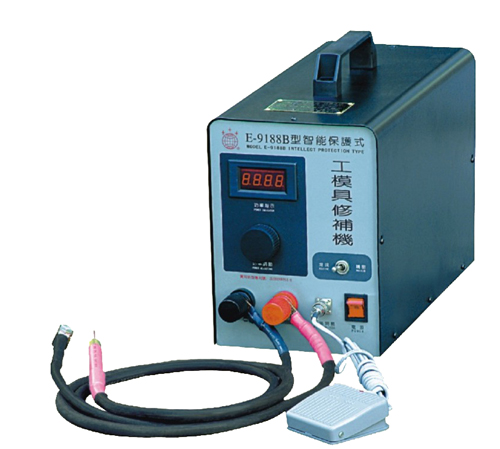

E-9188B type

E-9188B type

  Description

Description:

In order to adapt to the needs of our customers, E-9188B-type mold repair machine is another new development in the continued factory development E-9188A mold repair machine, the machine is the basis of the E-9188A tool and die repair machine on the internal structure of the machine and circuit reasonable arrangements to adjust the size of the machine, bigger and smaller, the weight is also greatly reduced, small and lean, easy to carry the main features of the machine, in addition, the aircraft of both the original 9188A tool and die repair machine the following advantages:

Main features:
1, the welding strength: repair, grinding, milling, filing and processing
2, high precision repair: repair sheet fill material will not lose datum, less the excess solder, easy post-surgery, the minimum amount of repair 0.03mm, maximum repair amount of 0.30mm.
3 Scope: In addition to copper, aluminum and other low resistance material, all kinds of metal material workpiece can be repaired.
4 Substrate injury: hot spots, will not cause deformation of the substrate annealing.
5, stable welding power: when the supply voltage variations fluctuate within a range of ± 10%, the machine is still able to ensure the quality of the repair.
6, the output power: single point welding welding ф1mm the wire.
7, Intelligent Protection type: the modern microcomputer control technology, ready access to all improper operation of automatic protection and Offbeat prompt.
8, the operation is simple: to adapt to the general manual.
Electrically connected: with magnetic connector, any size can be easily electrical connection.
10, easy to carry: small size machine.

Technical parameters:
Repair materials: In addition to copper, aluminum and other low resistivity material, a variety of metal materials can be repaired.
Patch: 1 processing defects in the manufacturing process, such as excessive cutting size super differential angular injury, TIG.

2 tool and die use of partial wear generated in the process.

Cavity corrosion depression.
Intelligent Protection range: 1. Improper operation

2 power supply voltage is too high

(3) does not shut down the normal state is directly converted into precision.
Power supply: single-phase 220V ± 10% 50Hz
Power consumption: 50-500W
Instantaneous maximum power: ≥ 10kW
Working mode: continuous
Continuous pulse frequency: 30Hz automatic frequency
Power mode: Precision and conventional
Dimensions: 400 × 190 × 260MM
Weight: about 20kg
