Products |

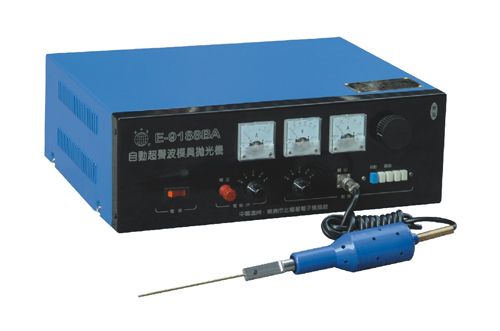

E-9188BA type |
Description |
Description:
E-9188BA improved ultrasonic mold polishing machine is increased on the basis of the E-9188B-automatic frequency tracking system, automatic tracking system frequency transducer operating frequency, in order to adapt to changes in the external conditions, so that the the transducer always work in the best resonant state, greatly improve work efficiency.
E-9188BA improved ultrasonic die polishing machine also uses a high-frequency the spark pulse power ultrasonic composite polishing and grinding process, the machine has a rough shaping ability, greatly improving the turning, milling, EDM, line cutting and other processing after the formation of coarse surface polishing speed of a machine in hand, you can achieve the mirror polishing from crude and shaping to completely replace the backward manual polishing process.
Very easy to use: the machine retains the original manual functions into the frequency co-ordination coarse button to the left of the first key (blue) manually tracking state, exit the blue button, to manual, the aircraft E-9188BA type is the latest version of the model.
Main features:
1, high efficiency, about ten times higher than the hand-polished.
2 from the rough shaping to mirror polishing process.
Regardless of operating complex shape, material hardness limit.
Tool head is drawn wide range of users can be made.
Operating frequency automatic tracking.
6 can be applied to general workers to operate.
Fine polishing does not affect the accuracy of work, does not collapse edges and corners.
Technical parameters:
Scope: the complexity of the mold cavity, narrow groove, slit, blind holes, large flat and all kinds of cemented carbide crude and shaping to mirror polishing.
Polishing materials: metal, carbide, glass, jade and agate.
3 surface roughness: polishing media: synthetic diamond abrasive paste or diamond abrasive paste.
5 Working frequency :26-31KHz
6 Power supply: 220V ± 10% 50HZ
7 Maximum power consumption: 350W
8 Dimensions: 320 × 420 × 140mm
Weight: about 14Kg
|
|
|
