Products |

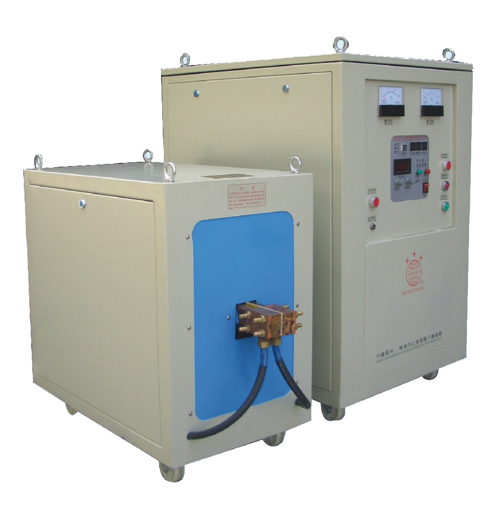

E-9188E100 medium-frequency, high-frequency, dual-band one |
Description |
Product Use:
1, through the hot forming
A, the kinds of standard fasteners and other mechanical parts, hardware tools, straight shank twist hot stone block, hot-rolled. 16mm diameter round, heated to about 3-5 seconds to extrusion.
B, annealing of metal materials, will stretch, shape embossed. If the tensile steel, pipe, smashed head, wire, heating wire nail, stainless steel products, annealing, stretching up.
2, heat treatment,
Kinds of hardware tools, electric, hydraulic, pneumatic components, air with motorcycle parts and other mechanical parts of the surface, bore, partial or total quenching, annealing, tempering. Such as hammers, knives, scissors, pliers and various types of shafts, cams, sprockets, gears, valves, ball head off. And large-scale machine tool guide and ductile iron quenching, many domestic sprocket and Machine Tool manufacturers have been using the equipment for heat treatment.
3, brazing
Various types of carbide blades, turning, milling, planer, reamer, diamond saw blade, saw welding. Grinding, drilling, welding and cutting tools. Other metal materials, hybrid welding. Such as brass, copper parts, valves, stainless steel pot.
4, metal smelting
Such as melting gold, silver, copper, etc..
5, the other heated areas
Plastic pipe, cable, wire heating film. Food, beverage, pharmaceutical industry to use aluminum foil, metal preheating expansion.
I plant equipment price is only about one-fifth of the similar imported products. Having a number of small, medium and large enterprises in Jiangsu, Zhejiang, Tianjin, Hebei, Henan, Hubei, Hunan, Beijing, Shanghai, Liaoning, Shandong and other widely used by the praise.
Main features:
Digital lock-in: the use of digital technology to achieve automatic frequency tracking, can automatically adapt to a variety of sensors.
Modular design: the control of the driver module to ensure equipment reliability and easy maintenance.
Resonant inverter technology: the use of resonant inverter technology equipment overall efficiency of ≥ 90% efficient, energy-saving, power consumption is only 20% -30% of the tube induction heating equipment.
All solid: IGBT device inverter, high frequency, small size, light weight.
Fool design: Easy to install, no need to debug, easy to use.
Safe and reliable: no million-volt high-voltage equipment, safe operation, can work 24 hours continuously.
Technical parameters:
Input Power: Single phase 220V
Oscillation frequency :30-50KHz
Maximum output power: 18KVA
Weight: about 32Kg
Dimensions: 490 * 240 * 460
Product Category:
Ordinary type, automatic type
Recommended for:
Saw blade welding, welding tools, small parts heat treatment, precious metal smelting
|
Model \ Parameters
|
Input supply voltage (V)
|
Error
|
Oscillation power (KVA)
|
Oscillation frequency (kHz)
|
Output power current (A)
|
Cooling water pressure (Mpa)
|
Weight (Kg)
|
|
18 high-frequency
|
Single-phase 220
|
±10%
|
18
|
100-200
|
750
|
0.07-0.2
|
18
|
|
18 IF
|
Single-phase220
|
±10%
|
18
|
60-150
|
800
|
0.07-0.2
|
20
|
|
25 high-frequency
|
Three-phase380
|
±10%
|
25
|
30-80
|
1000
|
0.1-0.2
|
23
|
|
25IF
|
Three-phase380
|
±10%
|
25
|
40-60
|
1100
|
0.1-0.2
|
25
|
|
35high-frequency
|
Three-phase380
|
±10%
|
35
|
40-60
|
1400
|
0.1-0.2
|
35
|
|
35IF
|
Three-phase380
|
±10%
|
35
|
40-60
|
1600
|
0.1-0.2
|
38
|
|
45high-frequency
|
Three-phase380
|
±10%
|
45
|
40-60
|
1700
|
0.15-0.2
|
65
|
|
45IF
|
Three-phase380
|
±10%
|
45
|
30-60
|
1800
|
0.15-0.2
|
70
|
|
65high-frequency
|
Three-phase380
|
±10%
|
65
|
30-60
|
1999
|
0.15-0.2
|
160
|
|
65IF
|
Three-phase380
|
±10%
|
65
|
20-40
|
2200
|
0.15-0.2
|
170
|
|
80dual-band
|
Three-phase380
|
±10%
|
80
|
20-40
|
2400
|
0.15-0.2
|
200
|
|
100dual-band
|
Three-phase380
|
±10%
|
100
|
20-40
|
2800
|
0.15-0.2
|
220
|
|
120dual-band
|
Three-phase380
|
±10%
|
120
|
20-40
|
3200
|
0.15-0.2
|
260
|
|
|
|
